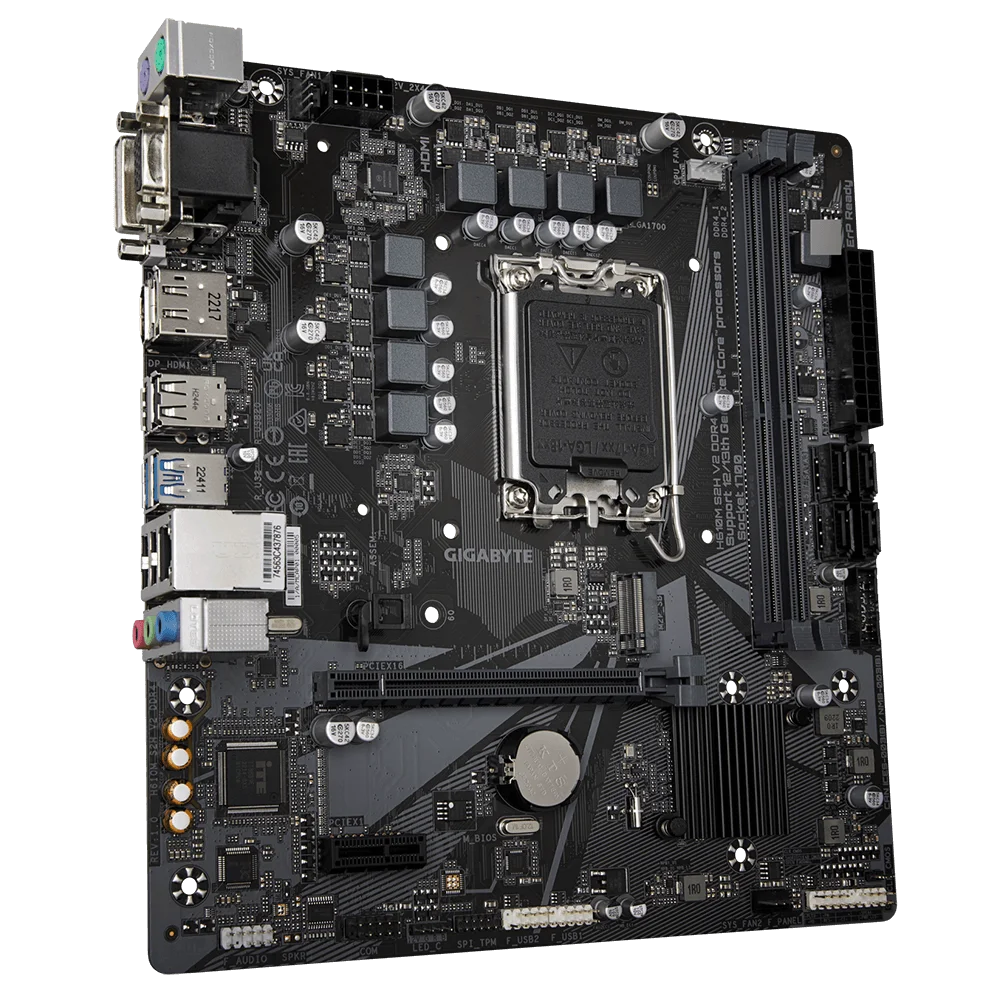

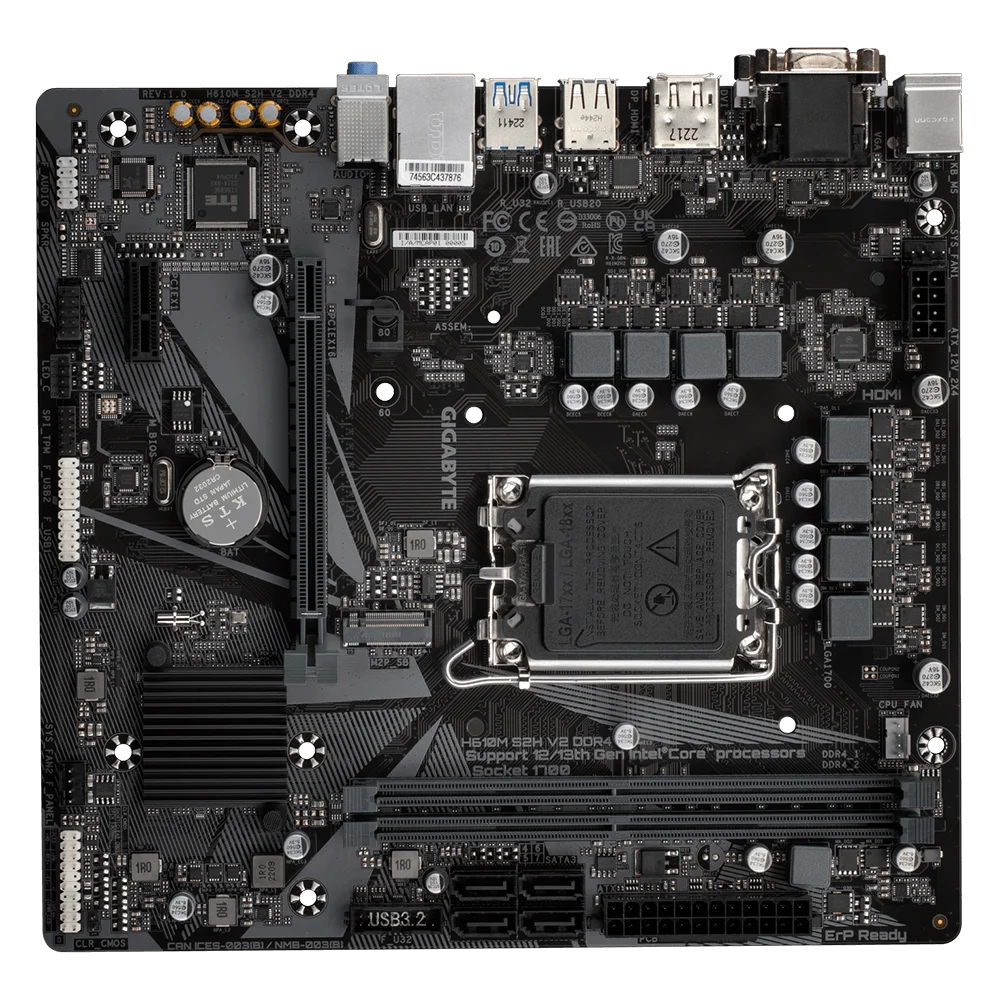

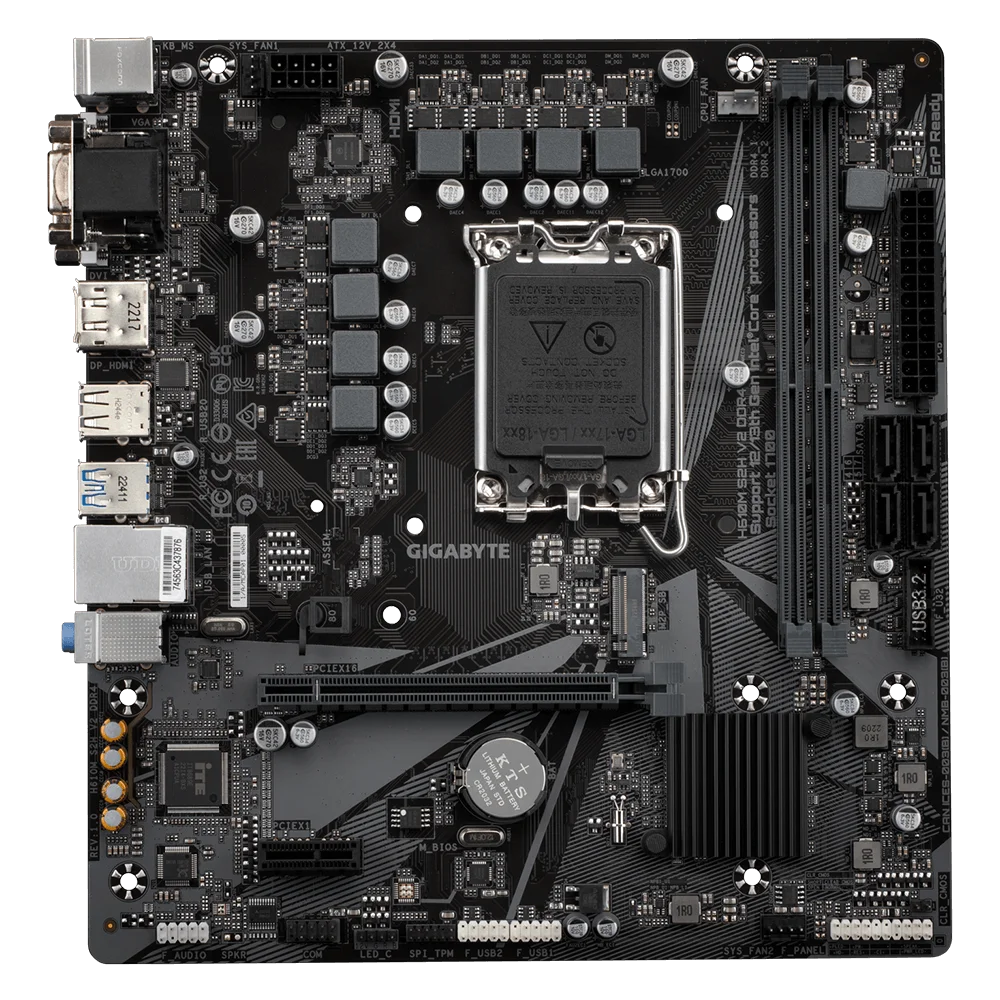

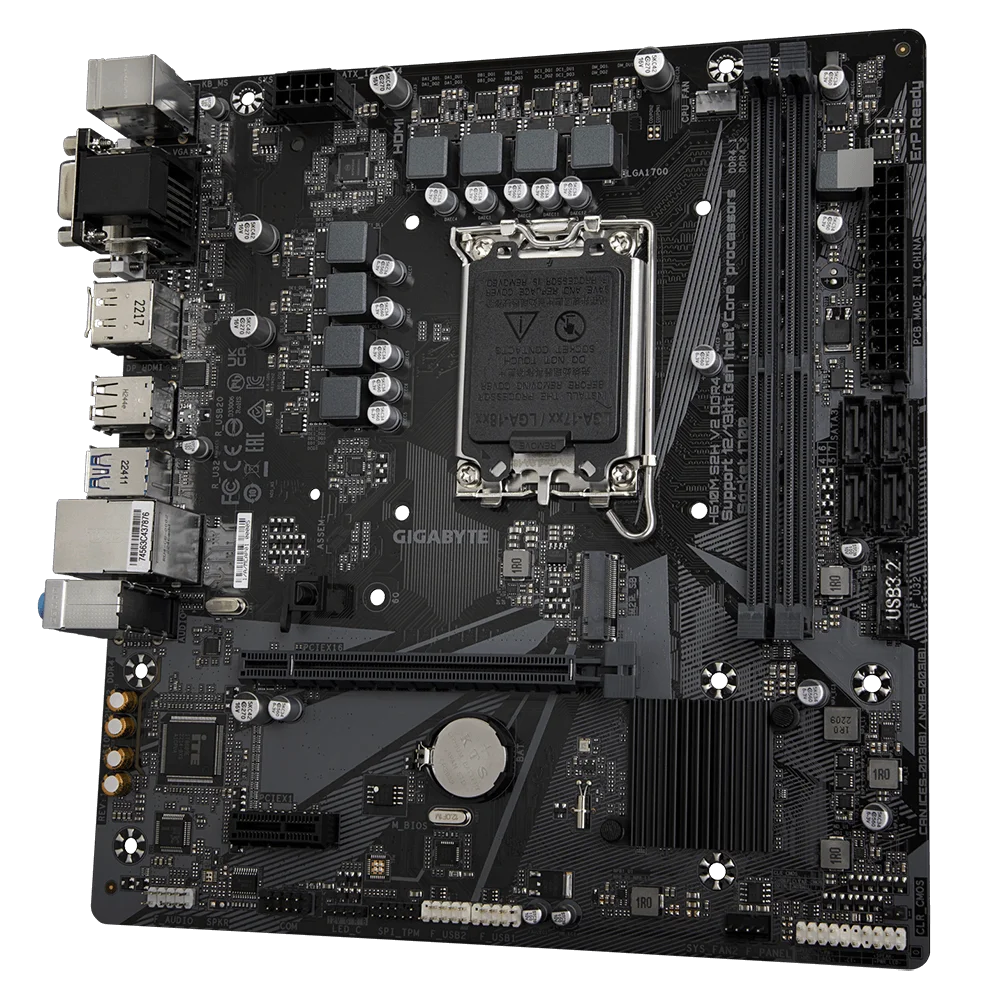

MAINBOARD GIGABYTE H610M S2H V2 DDR4

Thương hiệu: Gigabyte
CPU hỗ trợ: Intel
Chipset: H610
RAM hỗ trợ: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộng:
- 1 x PCI Express x16 slot, running at x16
- 1 x PCI Express x1 slot
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
Cổng kết nối (Internal):
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 2 x system fan headers
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

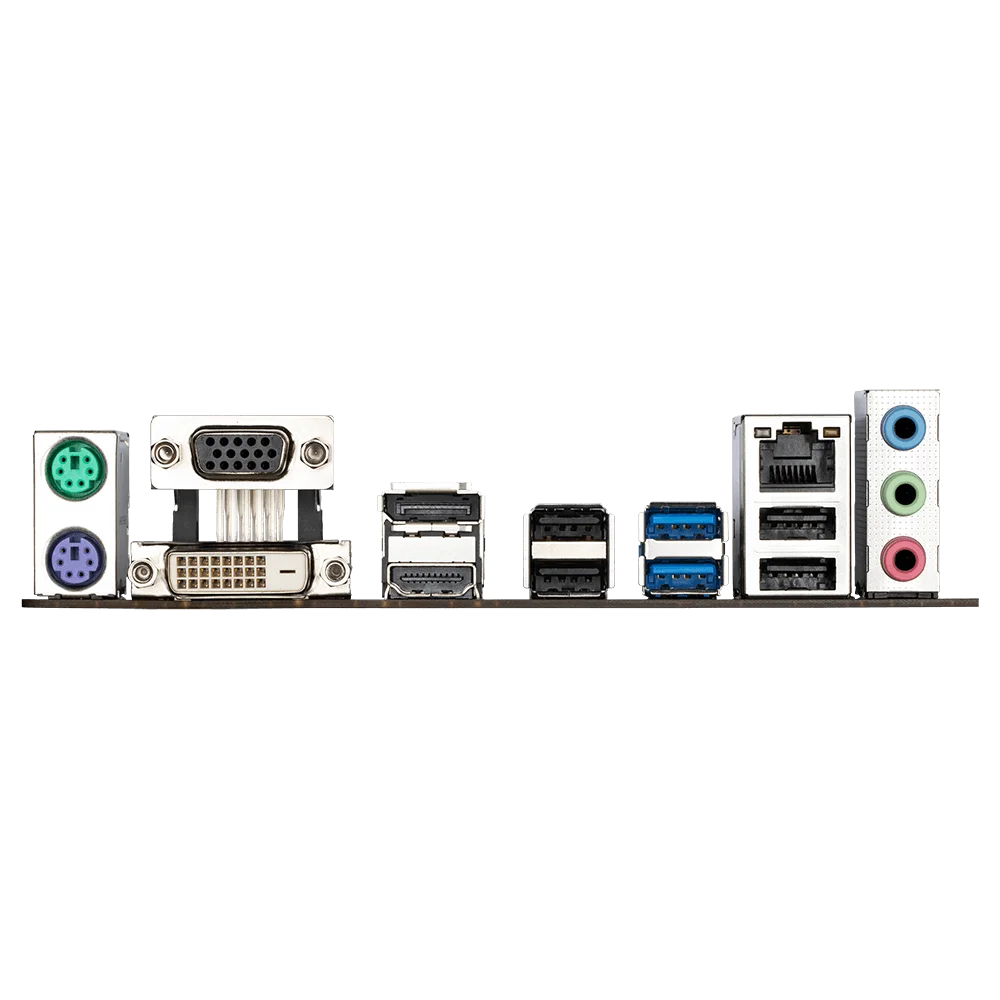

Cổng kết nối (Back Panel):
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x DisplayPort
- 1 x HDMI 2.0 port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
LAN / Wireless: Intel® GbE LAN chip (1 Gbps/100 Mbps)
Kích cỡ: Micro ATX Form Factor; 23.0cm x 21.5cm
