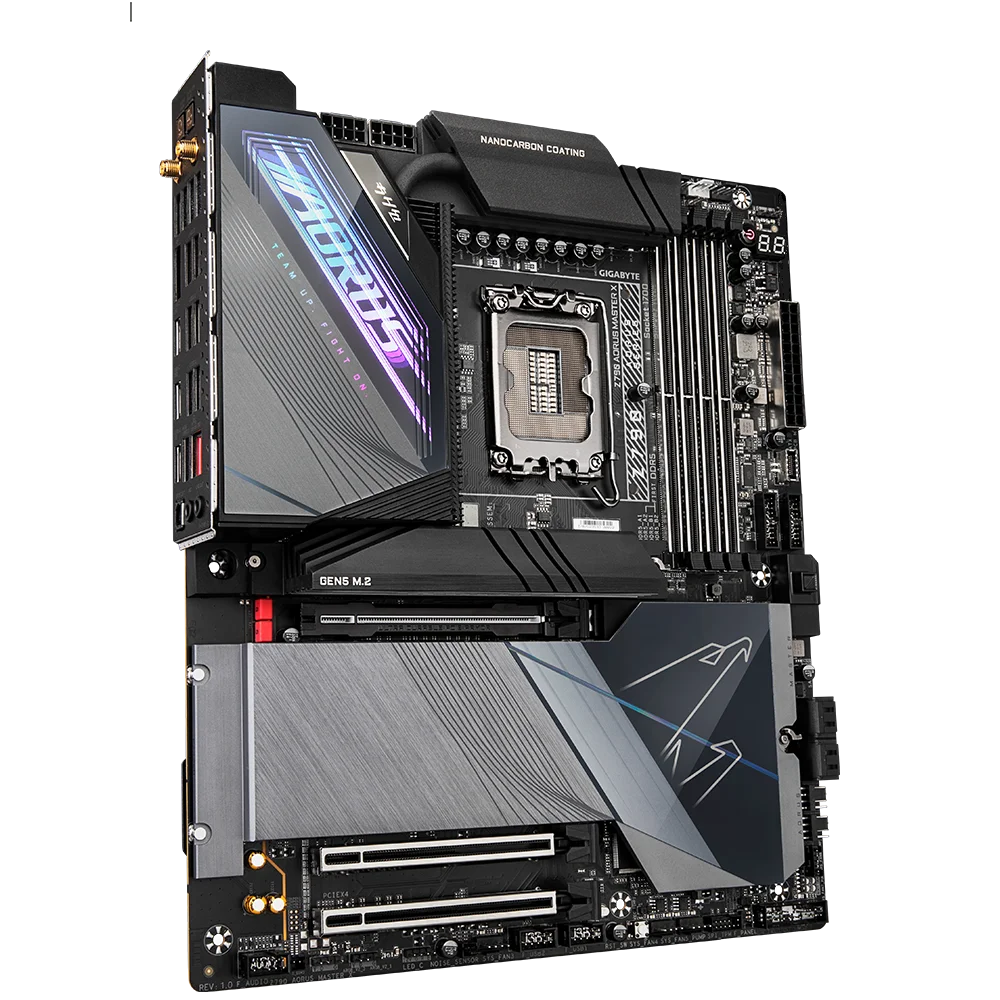

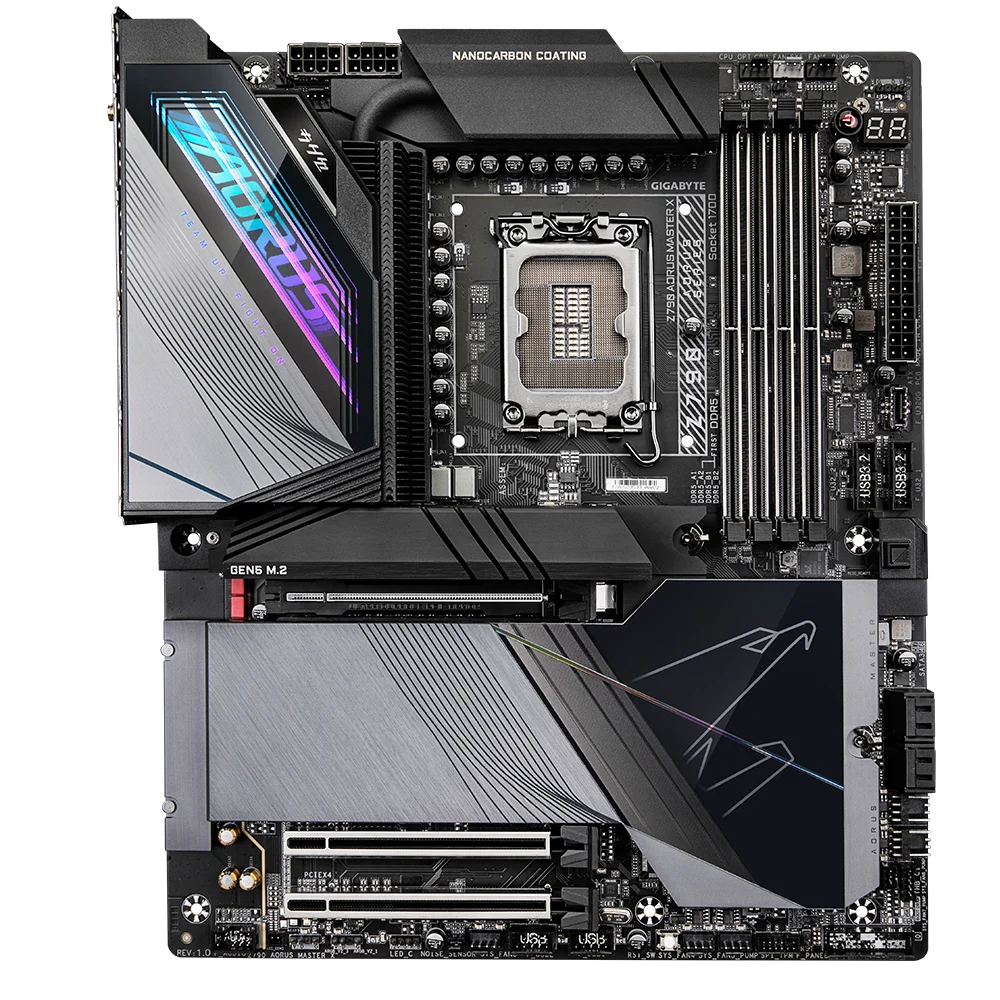

MAINBOARD GIGABYTE Z790 AORUS MASTER X

Thương hiệu: GIGABYTE

Bảo hành: 36 tháng

Chipset: Z790

Socket : Intel LGA 1700

Hỗ Trợ CPU: 14th, 13th, 12th Intel Core, Pentium Gold và Celeron

Khe ram tối đa: 4 khe

Hỗ trợ bộ nhớ tối đal 192GB

BUS RAM hỗ trợ: 4800, 4000, 5200(O.C.), 5400(O.C.), 5600(O.C.), 5800(O.C.), 6000(O.C.), 6200(O.C.), 6400(O.C.), 6600(O.C.), 6800(O.C.), 7000(O.C.), 7200(O.C.), 7400(O.C.), 7600(O.C.), 7800(O.C), 7900(O.C), 7950(O.C), 8000(O.C), 8200(O.C), 8266(O.C)

Cổng xuất hình: 1 x DisplayPort

Cổng trên main:

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points

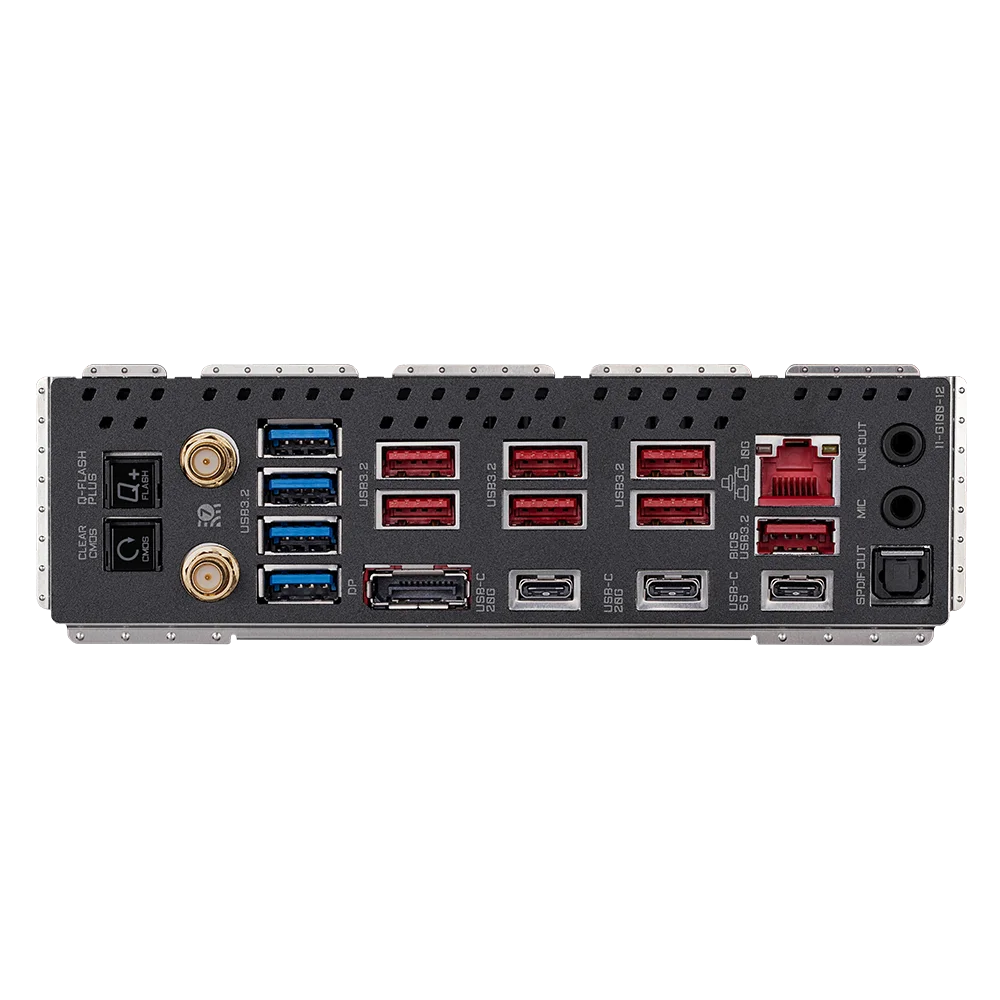

Cổng phía sau:

1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Âm thanh:

Realtek® ALC1220-VB CODEC
ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1-channel
Support for S/PDIF Out
Lưu trữ:

- CPU:

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
Khe cắm mở rộng:

- CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

- Chipset:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
LAN:

Marvell® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ Mainboard: E-ATX

Kích thước: 30.5cm x 26.0cm
