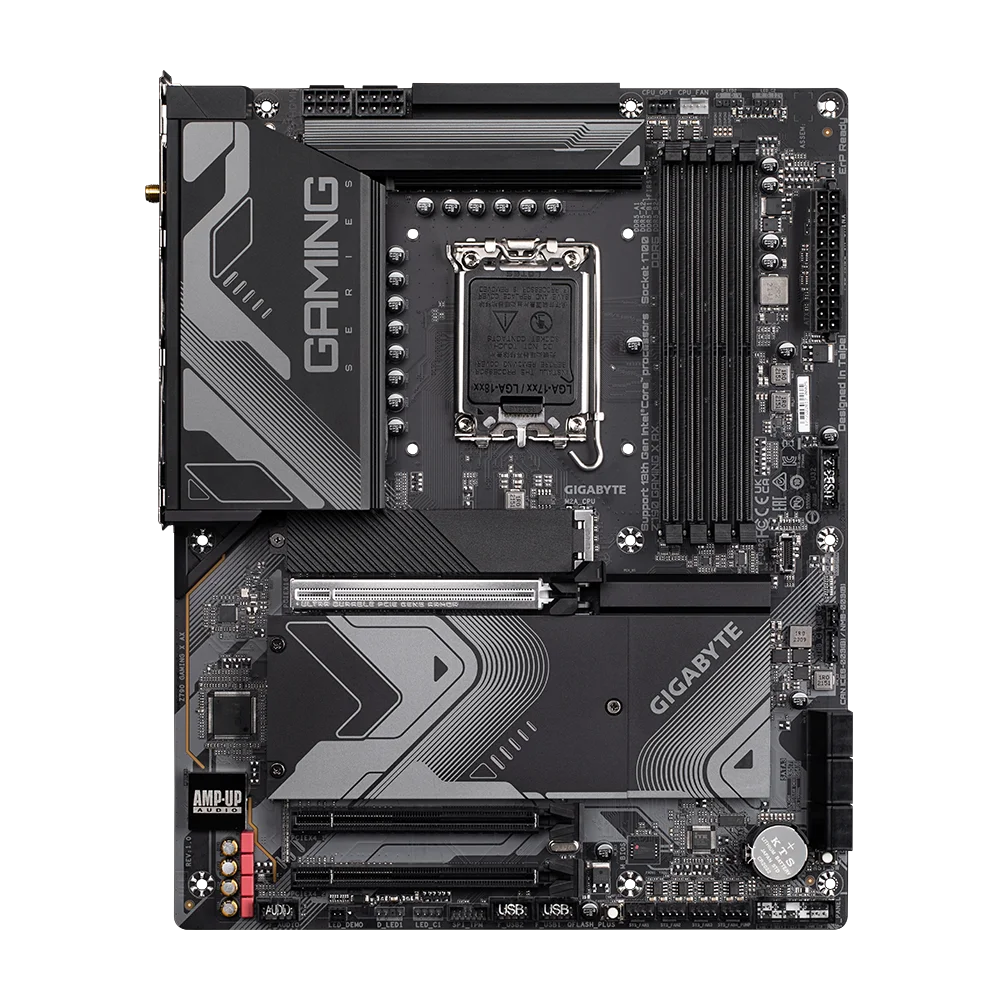

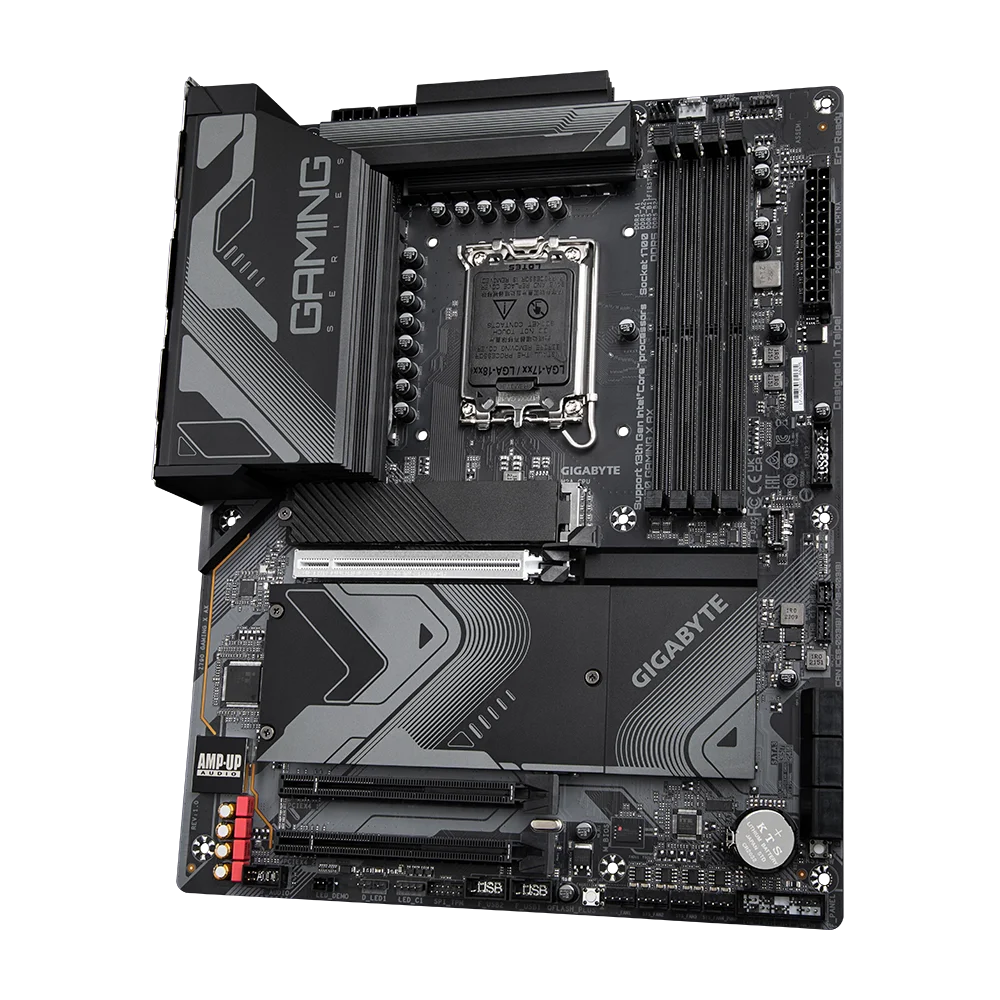

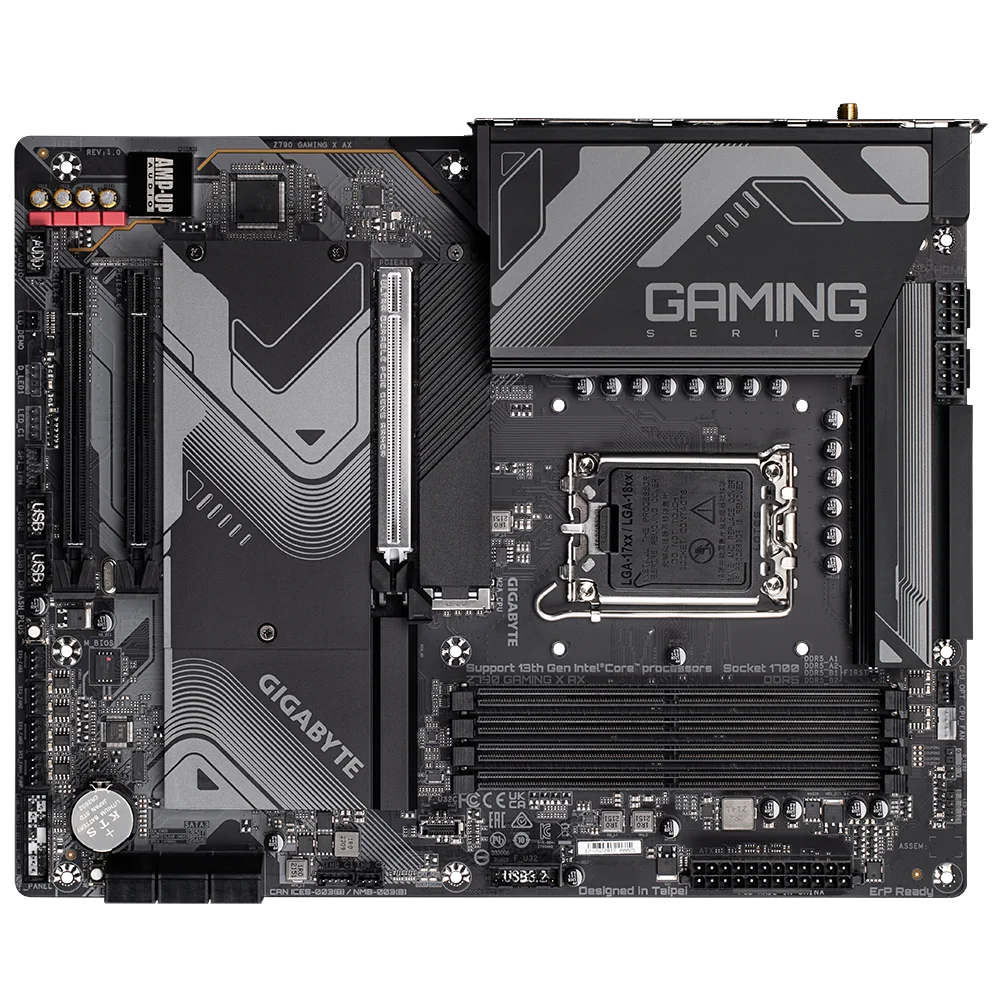

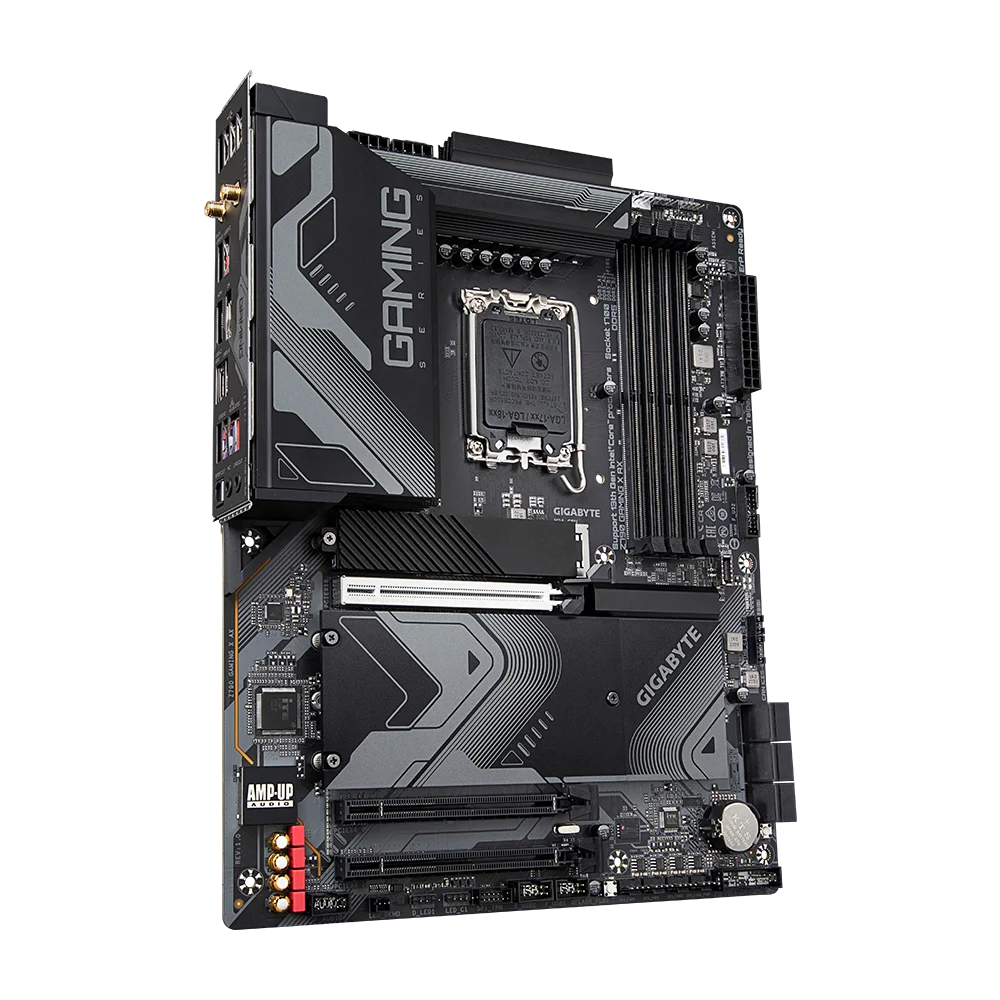

MAINBOARD GIGABYTE Z790 GAMING X AX DDR5

Thương hiệu: GIGABYTE

Bảo hành: 36 tháng

CPU hỗ trợ: Intel

Chipset: Z790

RAM hỗ trợ:

- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)

Khe cắm mở rộng:

- CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

- Chipset:

1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Ổ cứng hỗ trợ:

- CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

- Chipset:

2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Cổng kết nối (Internal):

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

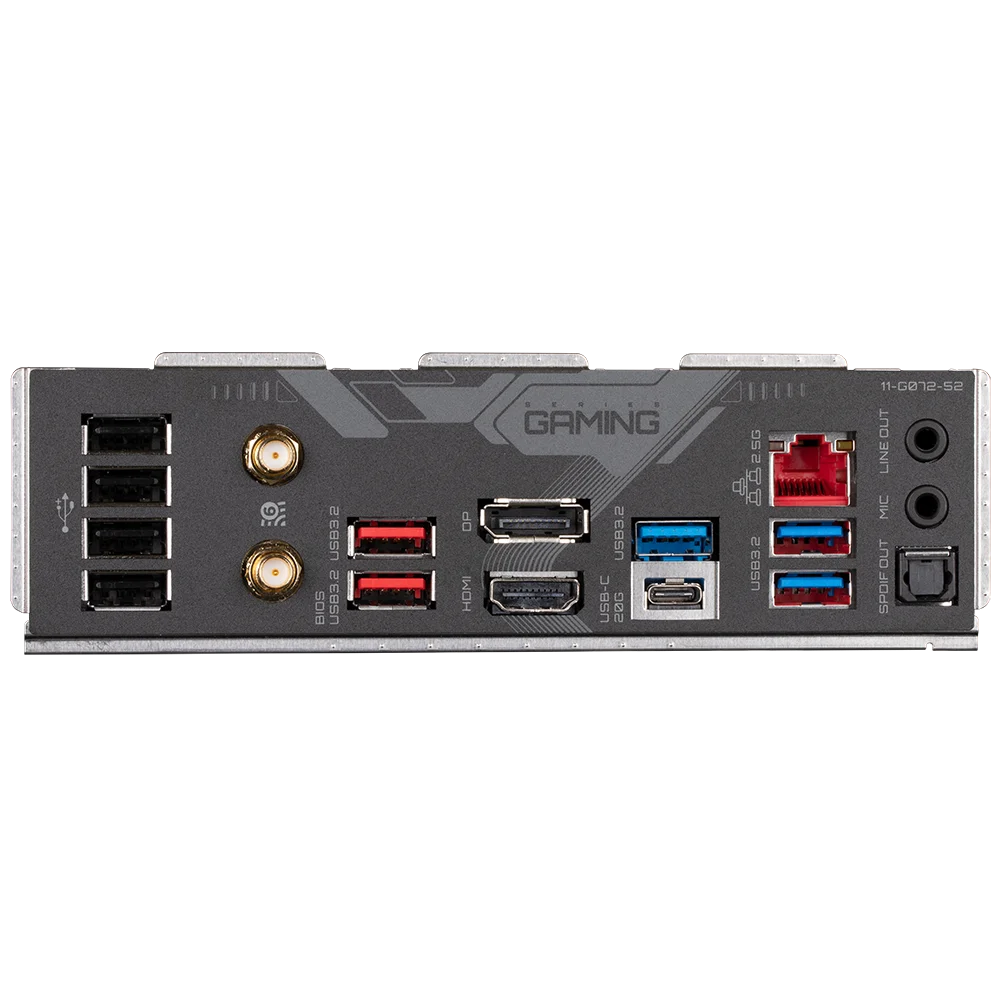

Cổng kết nối (Back Panel):

4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x DisplayPort
1 x HDMI 2.0 port
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
LAN / Wireless:

- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

- Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
- Intel® Wi-Fi 6E AX211 (PCB rev. 1.1)

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ: ATX Form Factor; 30.5cm x 24.4cm
